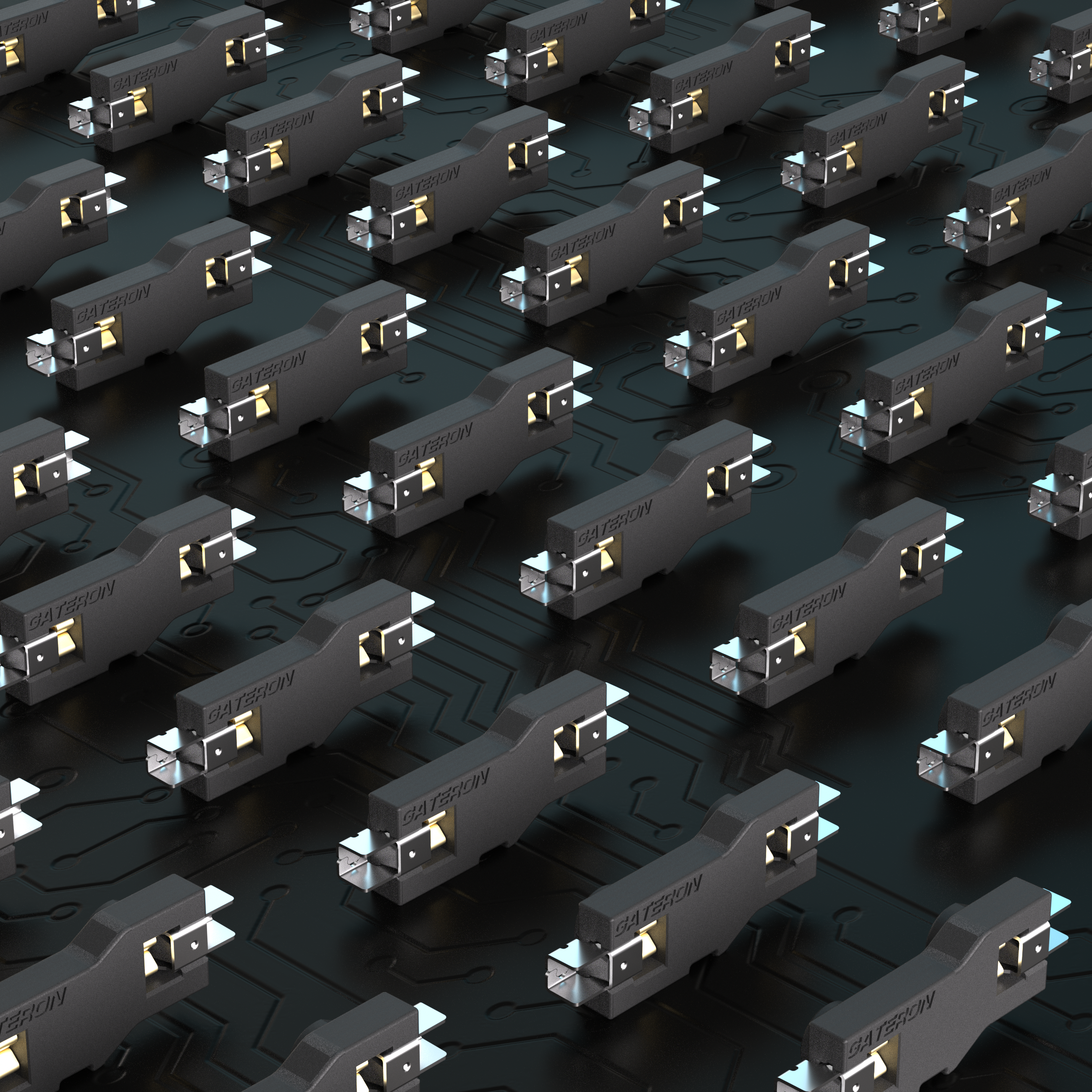

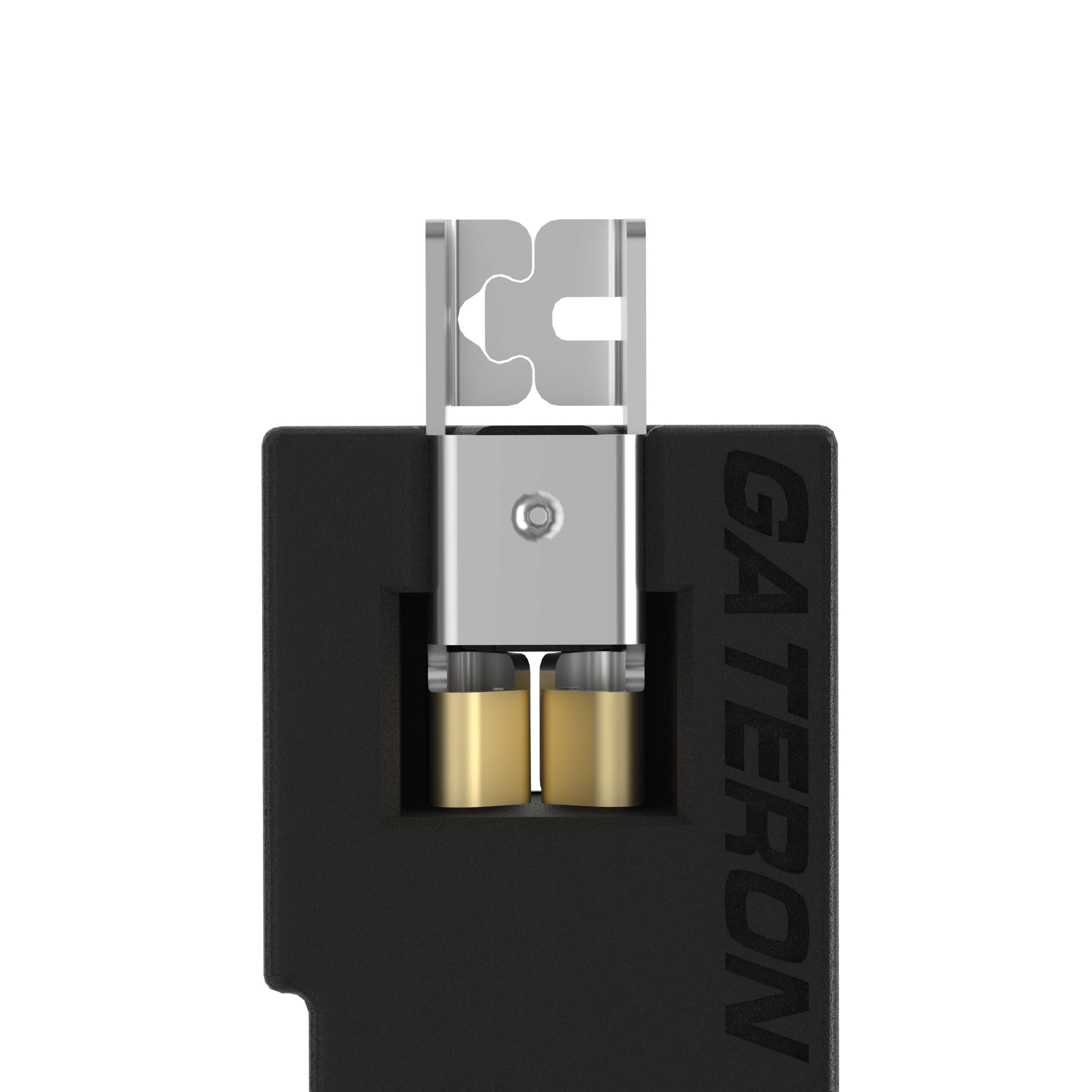

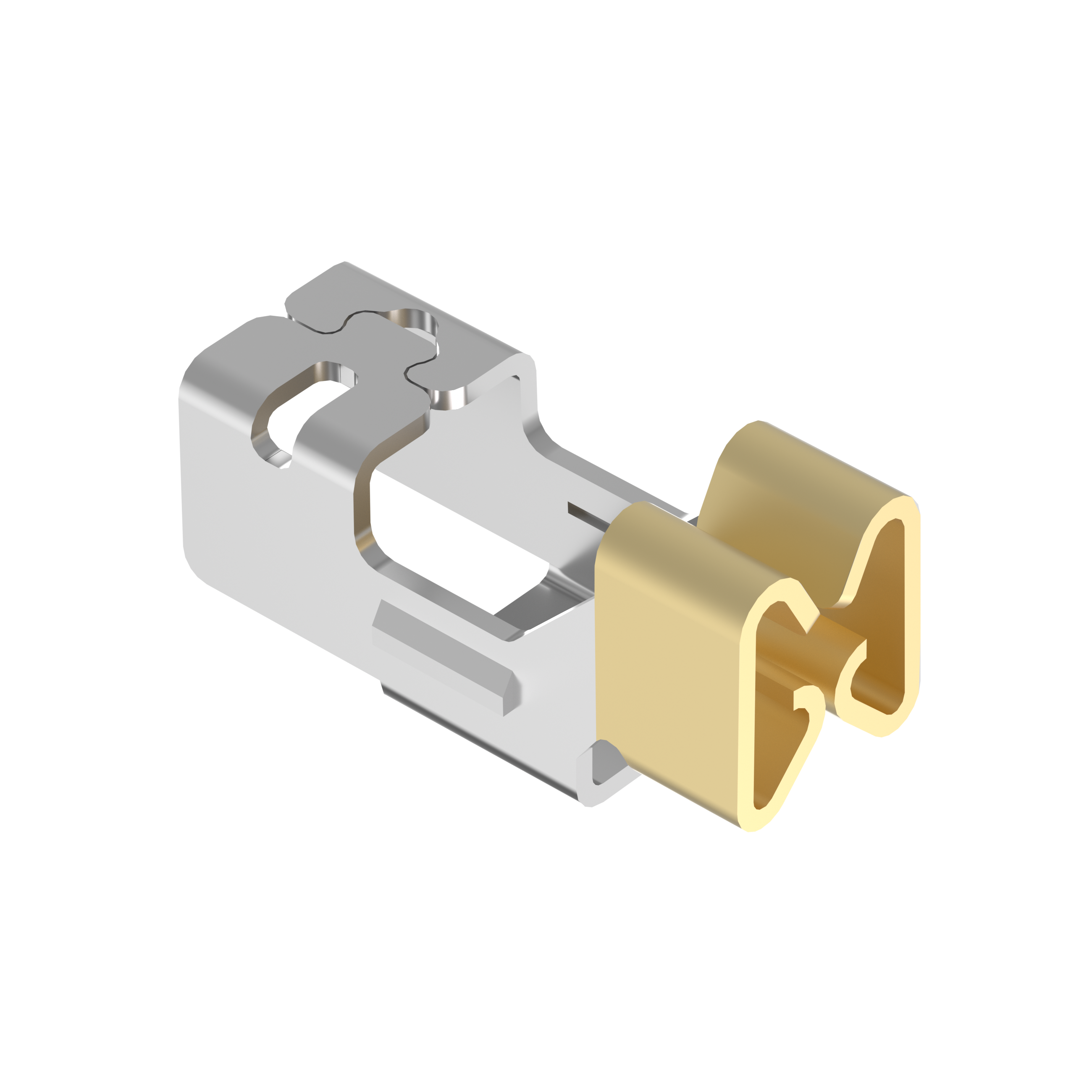

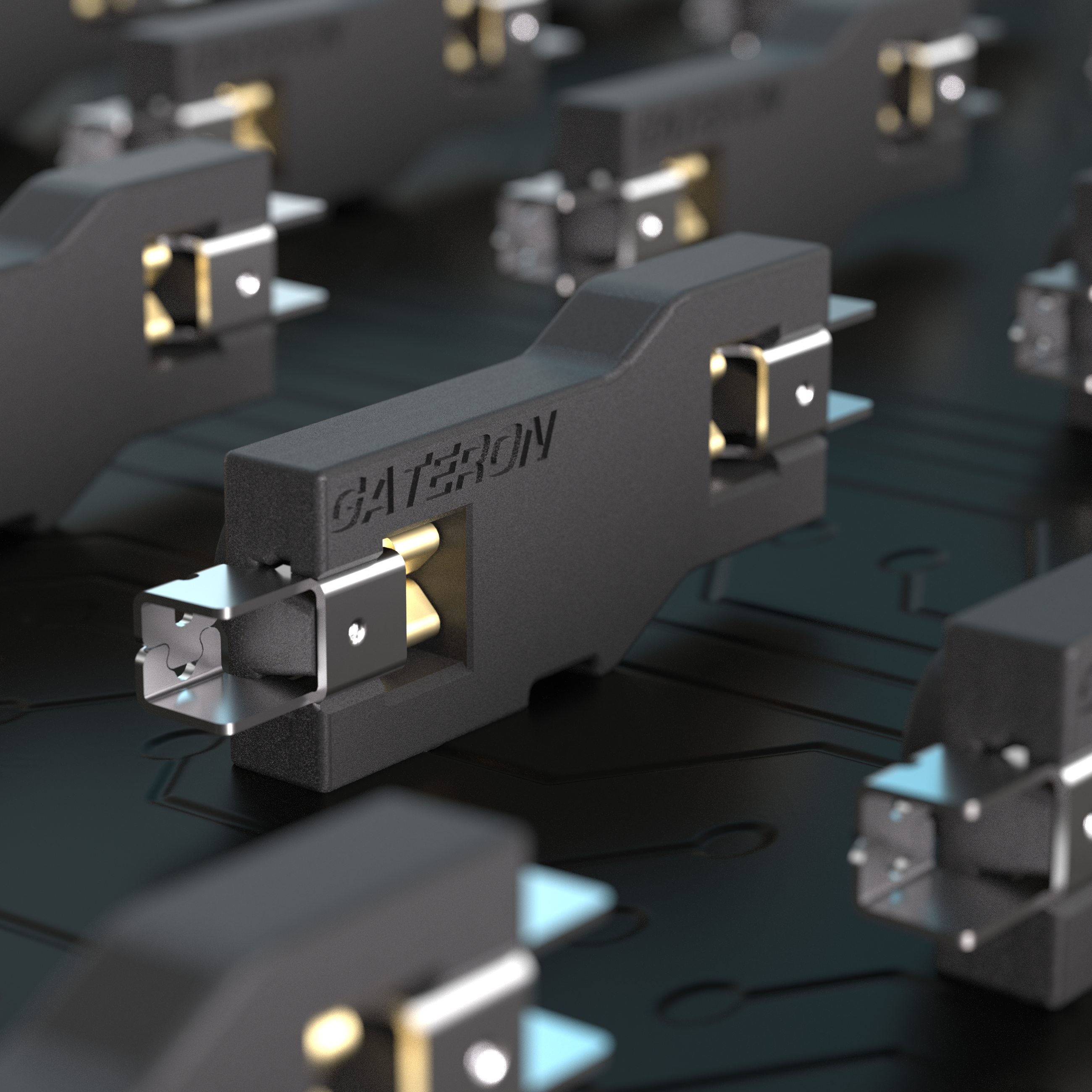

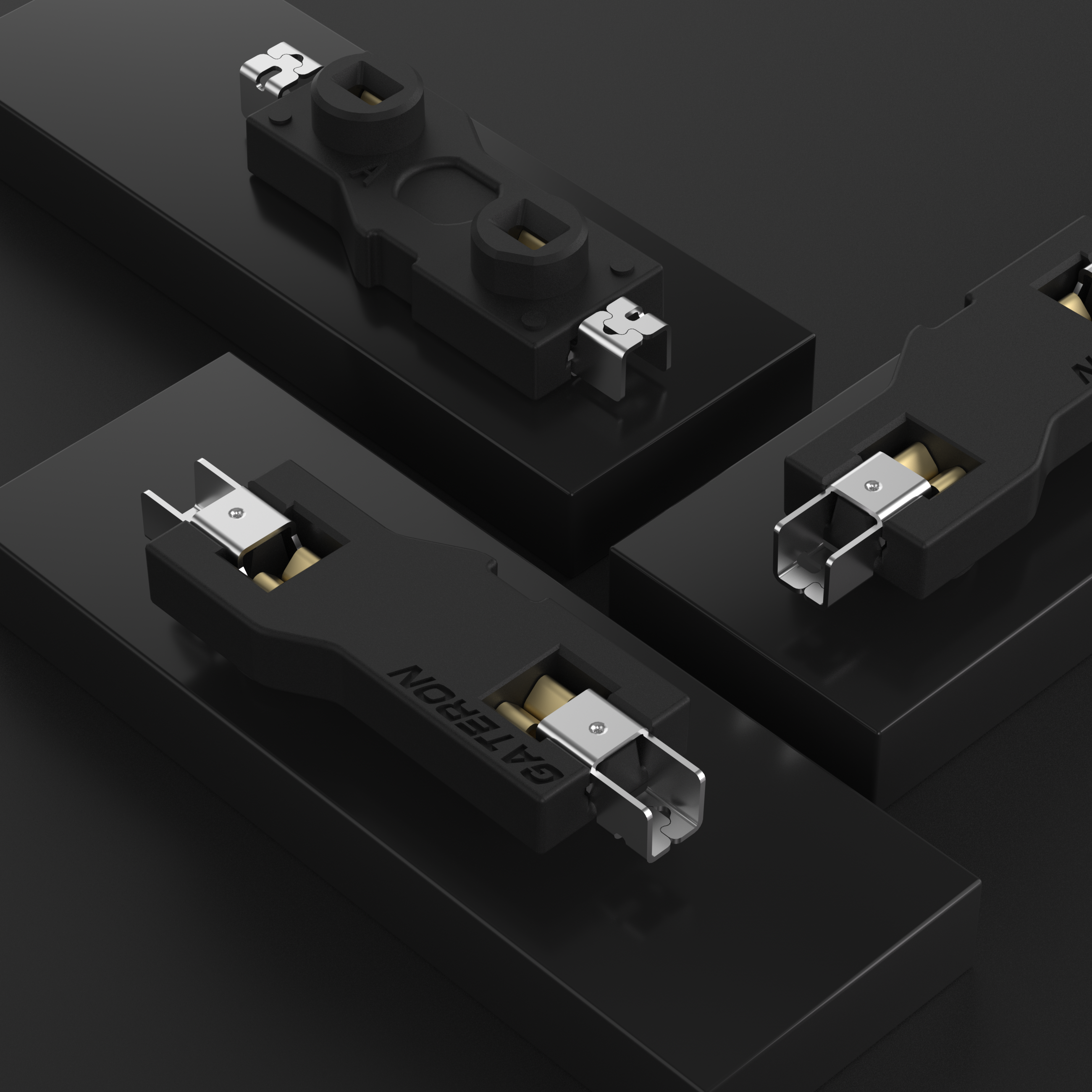

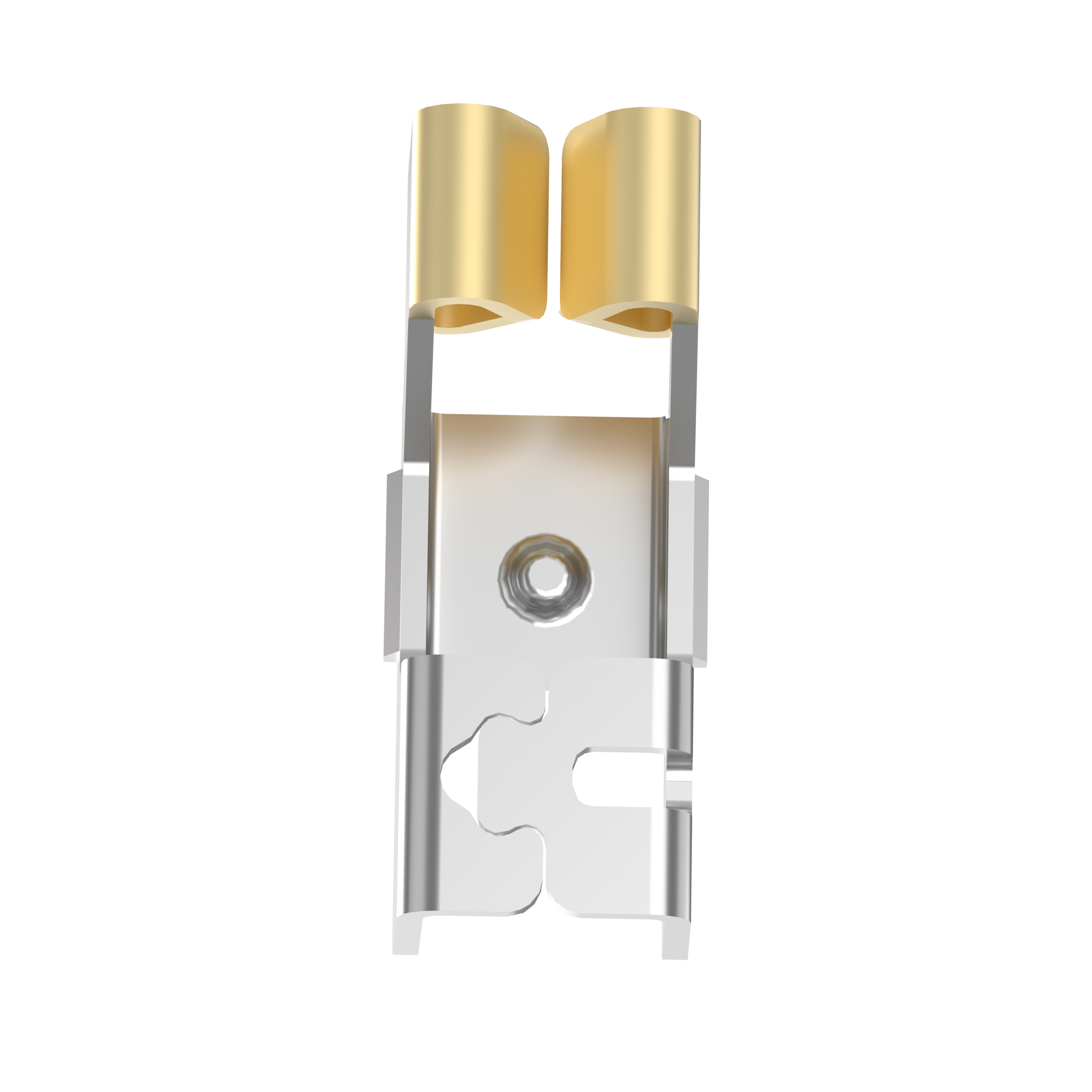

| It is a hot-swap socket that you can solder it on the bottom of the PCB and then you can swap between switches without soldering and desoldering just by pushing it in the socket. |
||
 |
 |
 |
 |
 |
 |
| To change the hot plug is to weld the rivets to the shaft plate,the electric iron needs to be preheated in advance,and it needs to be placed in the bracket carefully to avoid being burned. It is recommended to use leaded solder wire,the solder joints formed are rounded, remember to do a good job of ventilation. When soldering, the left hand holds the solder wire to send tin, and the right hand holds the soldering iron close to the rivet |  |
|
 |

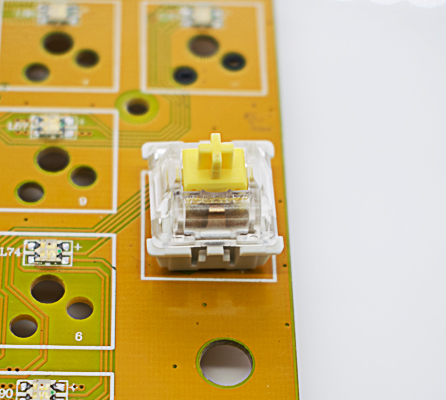

After the assembly is completed, install the shaft body and led (The pins of some shafts need to be properly inclined to contact the rivets. Please change them according to the actual situation; after installing the shaft, test whether the shaft is available and adjust it, and then insert the led to test whether the LED is available) | |

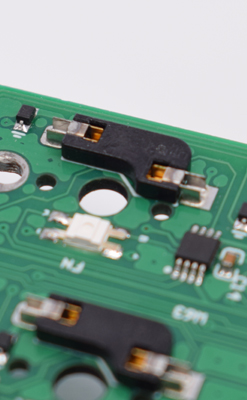

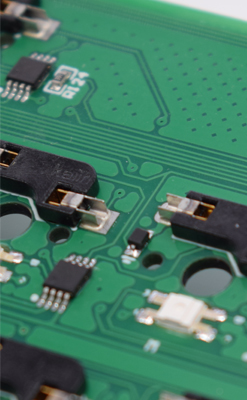

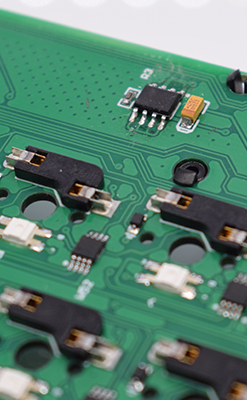

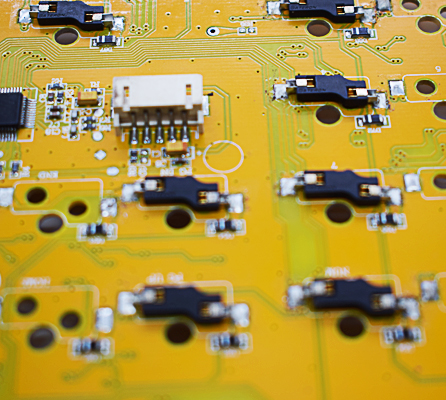

| The renderings on the PCB boar | ||
 |
 |
 |
