GATERON G Pro 2.0 3 Pin Switch Features
| Photo |
Stem |
Operation |
ForcePre Travel |
Total Travel |
PCB Mount |
Type |
Pre Lubed |
Apply For LED |
 |
White |
38±15 gf |
2.0±0.6 mm |
4.0 max |
3 Pin |
Linear |
Yes |
Plug In or SMD |
 |
Silver |
45±15 gf |
1.2±0.3mm |
3.4 max |
3 Pin |
Linear |
Yes |
Plug In or SMD |
 |
Red |
45±15 gf |
2.0±0.6 mm |
4.0 max |
3 Pin |
Linear |
Yes |
Plug In or SMD |
 |
Yellow |
50±15 gf |
2.0±0.6 mm |
4.0 max |
3 Pin |
Linear |
Yes |
Plug In or SMD |
 |
Black |
60±15 gf |
2.0±0.6 mm |
4.0 max |
3 Pin |
Linear
|
Yes |
Plug In or SMD |
 |
Brown |
55±15 gf |
2.0±0.6 mm |
4.0 max |
3 Pin |
Tactile |
Yes |
Plug In or SMD |
 |
Blue |
60±15 gf |
2.3±0.6 mm |
4.0 max |
3 Pin |
Clicky |
NO |
Plug In or SMD |
|
|
|

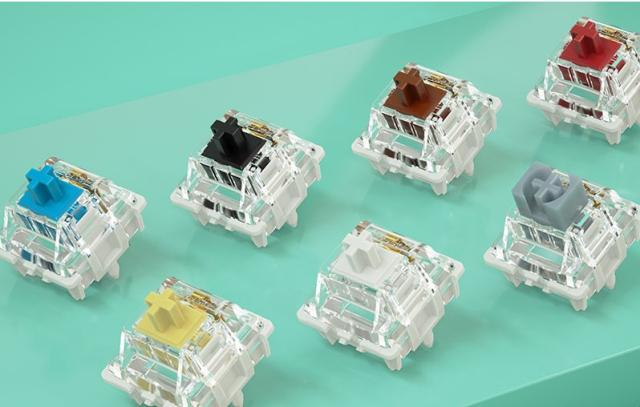

From the earliest G-switch to the G Pro series in self-lubricating, Now the new G Pro 2.0 has been upgraded and adjusted from the mold, These switch are in the affordable price and quite smooth type feeling.It become one of the first choice for many players. And it is a representative for the valuable switch. And The life time of that switch can reaches 80 million times.
 |
Firstly, G Pro 2.0 is from new mold, it is update from G pro standard version. A raised condenser lens and light guide pole is added in the top housing light hole. Top Housing made of high-permeability material, combined with patch LED,The LED light transmission is more obvious which can show more excellent light performance. not only transmit light, but also play a very good softening role and high gloss transparent top housing, making the light look more comfortable and natural. |
 |
 |
Secondly, the G Pro 2.0 keep the traditional
technical of factory self-lubricating And it is in upgrade in lubrication feels too, noise control is still very good.Thirdly, the contact leaf point are gold-plated.Brand-new oxidation-resistant gold contacts are also adopted in the Leaf, which has better durability, improved oxidation resistance and vulcanization resistance, and further improved the service life of the keyboard switch.
|
There is another important upgrade in spring for G Pro 2.0 red and Brown, but the operation keep same as G Pro, their spring upgrade from 15.4 mm(G Pro red and brown) to 20.5 mm(G Pro 2.0 red and brown), same operation force with longer spring as popular in marketing made rebound feel is stronger.
|
| Finally, the stem stability is upgrade too, you can feel it in obvious difference in G Pro 2.0 silver in wall stem. |
 |
Compatible any 3-Pin MX mechanical keyboard with SMD or Plug In??-LED light
 |
